The Complete Guide to Wayne Dalton Garage Door Opener’s

Wayne Dalton garage door openers were introduced around the same time as the popular Wayne Dalton 9100 garage door. These products were essentially created to be offered to home builders on a national builder program. Their popularity stemmed from the low-cost builders were paying to have them installed.

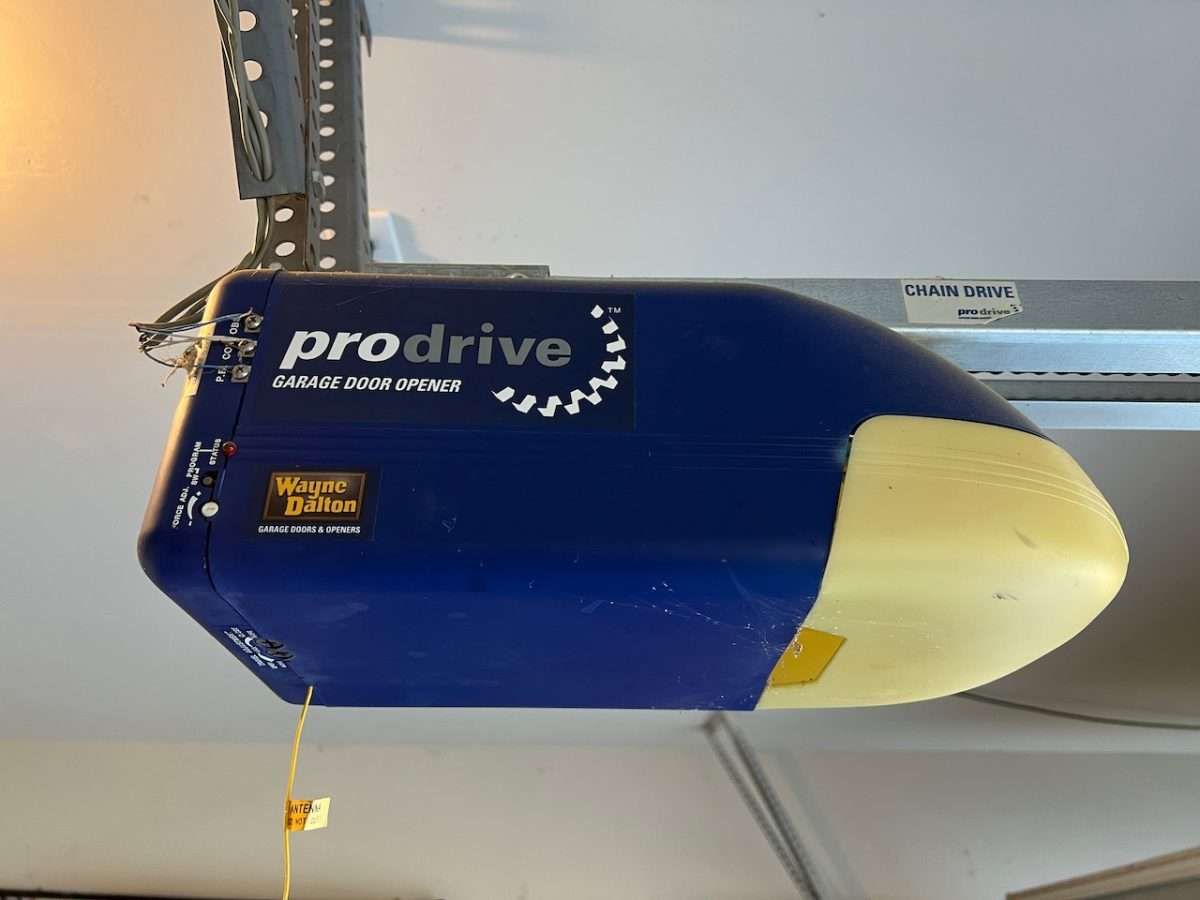

Wayne Dalton ProDrive Garage Door Opener

The ProDrive garage door opener by Wayne Dalton was their standard trolley style opener that was mainly installed by home builders. It was usually packaged with the Wayne Dalton 9100 garage door that featured there Torquemaster spring system.

It featured a single force adjustment dial on the side, along with the learn button for programming remotes. A standard universal LiftMaster 375 or 380UT remote would program to this unit. This opener had a reasonable track record and in our experience it would last around 10–15 years.

If you are having issues with your Wayne Dalton ProDrive opener, it’s best to replace the unit. They haven’t manufactured these units in years, so parts are not readily available. You would rather not put a lot of money into a unit that is no longer supported.

Wayne Dalton iDrive Garage Door Opener

The Wayne Dalton iDrive opener was a one of a kind design that was built around the Wayne Dalton Torquemaster spring system. This little garage door opener was installed by sliding the Torquemaster tube down the center of the opener. It did not have the best track record when it comes to reliability.

The iDrive garage door opener had two features that set it apart from all others. First, was the wall button on the wall inside the garage was wireless. This meant the unit was essentially battery powered and had no physical wires running to the motor head.

Second, the Wayne Dalton iDrive opener had no safety reversal sensors mounted at the bottom of the garage door tracks. The unit used a pulsating technology when closing, which I have not seen replicated on any other units.

My Wayne Dalton iDrive Opener Is No Longer Working. Now What?

If you have a Wayne Dalton iDrive garage door opener, and it has stopped working, you have a few options. If your garage door fails to open, first check to make sure the spring inside the Torquemaster tube is not broken. You can do this by pulling the manual red emergency release rope and try lifting the garage door by hand.

If the door is heavy, and it won’t lift, then you have a broken spring inside the Torquemaster tube. You won’t be able to see this spring like you would a standard torsion spring because it is a smaller spring inside the tube. At this point, you can choose to have your Torquemaster spring replaced and hope the iDrive opener is still functioning afterward.

If your garage door opens fine and is balanced, then most likely the iDrive garage door opener has gone out. You can have someone remove the unit, or you can leave it in place. If you plan to leave it in place, you will need to disengage the red emergency release rope and secure it, so the unit never engages.

Because it is complicated and labor-intensive to remove an iDrive opener, occasionally we have installed a standard LiftMaster trolley opener with the iDrive opener still in place. To accomplish this, you must permanently disengage the red emergency release rope by installing a screw in the handle, attaching it to a stud in the wall. This will prevent the unit from ever engaging and causing issues.

Whatever you do, don’t pay someone to try to diagnose the unit. You will most like be throwing your money away, as most garage door installers do not have any experience with this unit.

Older Wayne Dalton Openers

If you have an older Wayne Dalton opener like pictured above, you may be able to find someone who does commercial garage doors to work on it. The reason being is these older units are essentially commercial garage door opener that were installed in residential homes because that is all that was available at the time.

Otherwise, you can replace the unit with something more modern that will most likely give you smartphone control if that is something you prefer.

Conclusion

Wayne Dalton garage door openers did not have a storied history. They were around at the height of the builder boom and later were discontinued, most likely due to lack of popularity or because of the Genie, Wayne Dalton, and Overhead Door merger.

If you have one of these units, your best bet is to have it replaced once it starts giving you trouble. This will prevent you from having to pay any additional service call or diagnostic fees. Most reputable companies will tell you this once they walk into your garage.

That hard-earned money should be reserved for a new unit that will include a motor, rail, safety sensors, wall button, and at least one remote. This will give you a fresh start moving forward with one of the most commonly used appliances in the home today.
